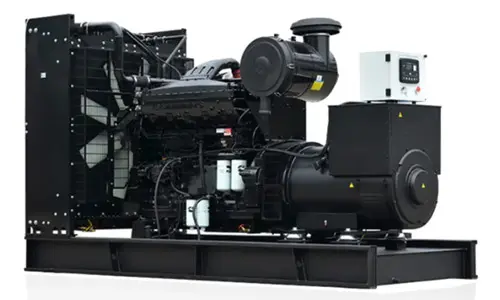

Cummins 27KVA Diesel Generator KCC-25GF 3-Phase 50HZ 400/230V
Cummins 27KVA Diesel Generator KCC-25GF 3-Phase 50HZ 400/230V
Genuine Cummins 27kVA diesel generator KCC-25GF, 3-phase 50Hz 400/230V. Powered by Cummins 4B3.9-G2 engine with low 208g/kWh fuel consumption. Compact 1800x850x1300mm open design. Reliable 20kW prime and 24kW standby output.
- • Powered by Genuine Cummins 4B3.9-G2 Engine
- • Compact & Space-Saving Design
- • Excellent Fuel Efficiency at Full Load
- • Standby Power Ready for Emergencies
- • 3-Phase Stable Output for Industrial Loads
Cummins 27KVA Diesel Generator Set – KCC-25GF (50Hz, 3-Phase)
The KCC-25GF is a robust and reliable 3-phase diesel generator set engineered around the globally proven Cummins 4B3.9-G2 industrial diesel engine. It delivers a prime power output of 22KW (27KVA) and a standby power output of 24KW (30KVA) at 50Hz, 400/230V, making it an ideal solution for small factories, commercial buildings, and emergency backup power systems.
Core Technical Specifications:
Engine Model: Cummins 4B3.9-G2, 4-stroke, water-cooled, turbocharged.
Displacement: 3.9L, ensuring smooth operation and rapid transient load response.
Fuel Consumption: Rated at 208g/kWh at prime power, offering exceptional fuel economy.
Physical Dimensions (Open Type): 1800mm (L) × 850mm (W) × 1300mm (H) – designed with a compact, heavy-duty steel base frame for easy transportation and installation.
Control System: Equipped with an advanced digital control panel, providing comprehensive safety protections including low oil pressure, high water temperature, over-current, and overload alarms.
The KCC-25GF combines world-class Cummins engineering with a cost-effective, industrial-grade construction, ensuring long-term durability and low maintenance costs for your power needs.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
