500kVA diesel generator set KCY-500GF Yuchai Engine
500kVA diesel generator set KCY-500GF Yuchai Engine
Yuchai 500kVA diesel generator set delivering 400kW prime power. Reliable YC6T550L-D20 engine with EUP injection and 550kVA standby capacity, suitable for mining and large industrial applications.
- • Durable Alloy Cast Iron Block with Replaceable Wet Liners
- • Reliable Cold Start Down to -25°C without Derating
- • Strong 550kVA Standby Power for Peak Demand
- • Advanced Four-Valve EUP Injection for Improved Combustion
- • Powerful Yuchai YC6T550L-D20 Engine for Large-Scale Output

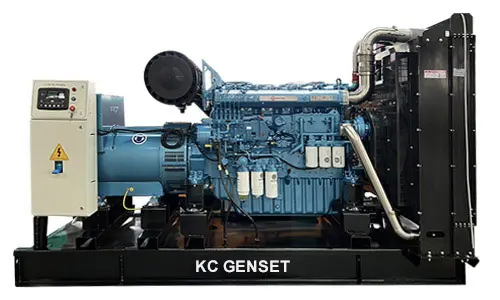

500kVA Diesel Generator Set – KCY-500GF
The KCY-500GF is a high-performance generator set powered by the Yuchai YC6T550L-D20 diesel engine. Featuring a 6-cylinder, 16.35-liter inline configuration with turbocharging and air-to-air intercooling, this unit delivers a prime power output of 400kW (500kVA) and a standby power output of 441kW (550kVA) at 50Hz, 400/230V, 3-phase. The engine employs a four-valve electronic unit pump (EUP) injection system with a 15:1 compression ratio, providing efficient combustion and stable performance. A digital control panel monitors key parameters and provides comprehensive protection functions.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
