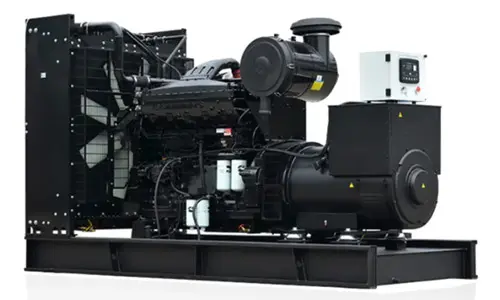

Cummins 62.5KVA Diesel Generator KCC-63GF 3-Phase 50HZ 400/230V
Cummins 62.5KVA Diesel Generator KCC-63GF 3-Phase 50HZ 400/230V
Genuine Cummins 62.5kVA diesel generator KCC-63GF, 50Hz 400/230V 3-phase. Powered by the reliable Cummins 4BT3.9-G2 engine, delivering 50kW prime and 55kW standby power. Compact open design, 208g/kWh low fuel consumption, and global after-sales support.
- • Premium 4-Cylinder Cummins Engine Performance
- • Extended Runtime with Large 55kW Standby Output
- • Enhanced Cooling & Quiet Open-Style Layout
- • Proven Global Service Network & Spare Parts Support
- • Low Vibration & Noise Reduction Technology
Cummins 62.5kVA Diesel Generator Set – KCC-63GF (50Hz, 3-Phase)
The KCC-63GF is a robust mid-range power solution engineered for continuous industrial duty. Powered by the widely proven Cummins 4BT3.9-G2 diesel engine, this 4-cylinder, 4-stroke, water-cooled unit delivers a prime power output of 50kW (62.5kVA) and a standby power output of 55kW (69kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Cummins 4BT3.9-G2, turbocharged and charge-air cooled for optimal combustion.
Displacement: 3.9L, known for its high torque at low RPM and excellent transient response.
Fuel Consumption: Efficiently rated at 208g/kWh at prime load, ensuring a low total cost of ownership over its lifespan.
Physical Dimensions: 1800mm (L) × 900mm (W) × 1400mm (H) – designed with a heavy-duty steel skid base and anti-vibration mounts.
Control System: Advanced digital controller with multi-language display, offering full protection against over-current, low oil pressure, high water temperature, and engine overspeed.
Built with genuine Cummins components and assembled under strict quality control, the KCC-63GF provides a dependable, fuel-efficient, and easily serviceable power source for critical equipment and facility backup.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
