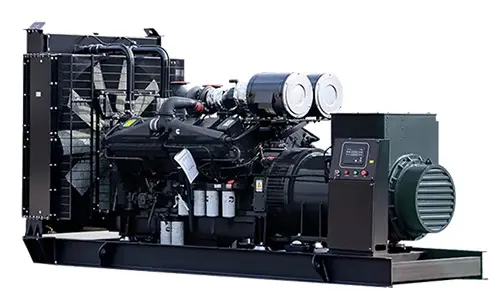

Cummins 65KVA Diesel Generator KCC-70GF 3-Phase 50HZ 400/230V
Cummins 65KVA Diesel Generator KCC-70GF 3-Phase 50HZ 400/230V
Genuine Cummins 65kVA diesel generator KCC-70GF, 50Hz 400/230V 3-phase. Powered by the 4BT3.9-G2 engine with 52kW prime and 56kW standby output. Features low 208g/kWh fuel consumption, electronic governor, and advanced digital controller.
- • Proven 4BT3.9-G2 Engine with Turbocharged Power
- • Precision Electronic Governor for Stable Frequency
- • Comprehensive Digital Controller with Fault Diagnosis
- • Optimized 208g/kWh Fuel Economy for Lower Operating Costs
- • Flexible Base Frame with Built-In Anti-Vibration Mounts
Cummins 65kVA Diesel Generator Set – KCC-70GF (50Hz, 3-Phase)
The KCC-70GF is an industrial-grade diesel power solution engineered around the globally recognized Cummins 4BT3.9-G2 engine. Delivering a stable prime power output of 52kW (65kVA) and a standby power output of 56kW (70kVA) at 50Hz, 400/230V, 3-phase, this genset is built for reliable, continuous-duty operation.
Core Technical Specifications:
Engine Model: Cummins 4BT3.9-G2, 4-stroke, water-cooled, turbocharged, with charge air cooling for improved combustion.
Displacement: 3.9L, providing consistent torque and rapid response to load changes.
Fuel Consumption: Rated at 208g/kWh at prime power, designed for cost-effective long-term operation.
Construction: Heavy-duty welded steel skid base with integrated anti-vibration mounts; compact design with 1800mm (L) × 900mm (W) × 1400mm (H) standard footprint.
Control System: Equipped with an advanced digital control panel that provides real-time monitoring of key parameters (voltage, current, oil pressure, water temperature) and offers comprehensive protection against common faults, including overload, low oil pressure, and high water temperature.
Backed by genuine Cummins components and rigorous factory testing, the KCC-70GF delivers consistent, efficient, and safe power for a wide range of industrial and commercial power requirements.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
