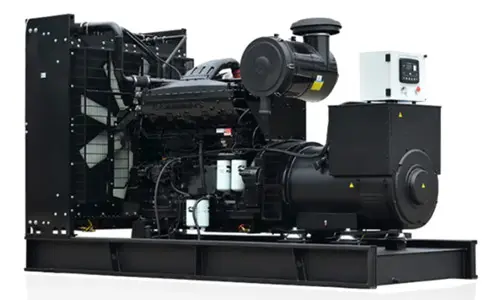

Cummins 125KVA Diesel Generator KCC-125GF 3-Phase 50HZ 400/230V
Cummins 125KVA Diesel Generator KCC-125GF 3-Phase 50HZ 400/230V
Genuine Cummins 125kVA diesel generator KCC-125GF, 50Hz 400/230V 3-phase, equipped with a 6-cylinder 6BT5.9-G2 engine offering 100kW prime and 110kW standby output, delivering 208g/kWh fuel efficiency and heavy-duty cooling for stable continuous power.
- • 100kW Prime Power from a Durable 6-Cylinder Platform
- • Rapid Load Acceptance with Turbocharged Performance
- • Proven 5.9L Displacement with 208g/kWh Fuel Economy
- • Heavy-Duty Radiator System for High-Temperature Environments
- • Convenient Side-Access Points for Routine Service
Cummins 125kVA Diesel Generator Set – KCC-125GF (50Hz, 3-Phase)
The KCC-125GF is a robust industrial generator set built around the field-proven Cummins 6BT5.9-G2 diesel engine. Featuring a 6-cylinder, 5.9-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 100kW (125kVA) and a standby power output of 110kW (138kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Cummins 6BT5.9-G2, 4-stroke, water-cooled, turbocharged with charge-air cooling.
Displacement: 5.9L, designed for consistent torque delivery and reliable cold-start performance.
Fuel Consumption: Rated at 208g/kWh at prime power, maintaining good fuel efficiency at this output level.
Cooling System: Industrial-grade closed-circuit water cooling with a heavy-duty radiator, suitable for continuous operation in elevated ambient temperatures.
Control System: Advanced digital controller with a clear LCD interface, providing real-time monitoring of key parameters and automatic shutdown protection for faults such as low oil pressure, high water temperature, over-current, and overspeed.
Built with genuine Cummins components and rigorously tested at the factory, the KCC-125GF provides stable, efficient, and dependable power for commercial and industrial applications.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
