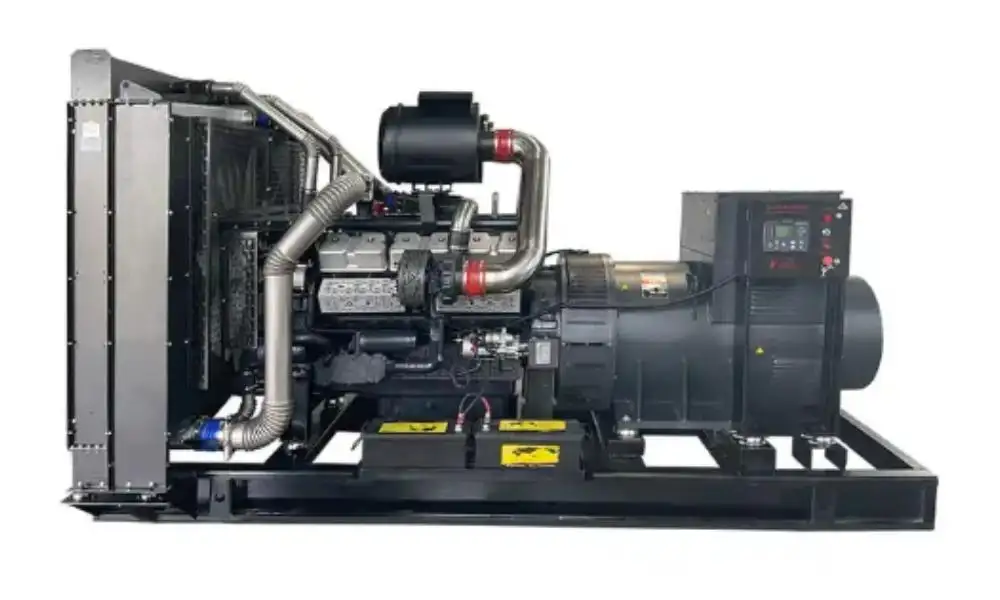

Cummins 113KVA Diesel Generator KCC-113GF 3-Phase 50HZ 400/230V
Cummins 113KVA Diesel Generator KCC-113GF 3-Phase 50HZ 400/230V
Genuine Cummins 113kVA diesel generator KCC-113GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder 6BT5.9-G2 engine delivering 90kW prime and 100kW standby output with 210g/kWh fuel consumption and a closed-circuit cooling system for reliable continuous operation.
- • Higher Power Rating from a Proven 5.9L 6-Cylinder Engine
- • Stable 90kW Prime Power for Continuous Industrial Loads
- • Efficient 210g/kWh Fuel Consumption in a Mid-Size Package
- • Durable Closed-Circuit Cooling System with Overheat Protection
- • Easy Access to Maintenance Points for Reduced Downtime
Cummins 113kVA Diesel Generator Set – KCC-113GF (50Hz, 3-Phase)
The KCC-113GF is a reliable industrial generator set powered by the widely recognized Cummins 6BT5.9-G2 diesel engine. With a 6-cylinder, 5.9-liter inline configuration, this unit provides a prime power output of 90kW (113kVA) and a standby power output of 100kW (125kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Cummins 6BT5.9-G2, 4-stroke, water-cooled, turbocharged, with charge-air cooling for efficient combustion.
Displacement: 5.9L, offering consistent torque and smooth operation across varying load conditions.
Fuel Consumption: Rated at 210g/kWh at prime power, balancing output capacity with operational economy.
Cooling System: Industrial-grade closed-circuit radiator system, designed to maintain stable operating temperatures under continuous use.
Control System: Integrated digital control module with protections for low oil pressure, high water temperature, overload, and overspeed. Features an easy-to-read LCD display for real-time voltage, current, and frequency monitoring.
Assembled with genuine Cummins components and subjected to factory load testing, the KCC-113GF provides dependable power output and operational stability for industrial and commercial power requirements.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
