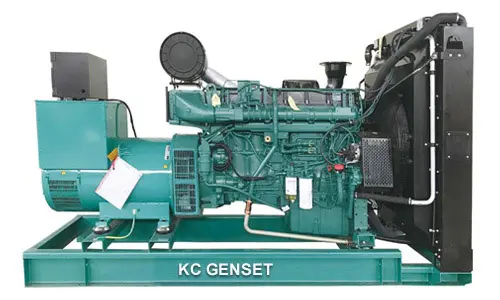

313KVA VOLVO Diesel Generator KCV-350GF
313KVA VOLVO Diesel Generator KCV-350GF
Genuine VOLVO 313kVA diesel generator KCV-350GF, 50Hz 400/230V 3-phase, powered by a 12.78L TAD1341GE engine with electronic high-pressure injection and wastegate turbo delivering 250kW prime and 280kW standby output, featuring EMS 2 management for reliable large-scale power delivery.
- β’ Large-Displacement VOLVO PENTA TAD1341GE Engine (12.78L)
- β’ Electronically Controlled Wastegate Turbocharger
- β’ Rigid Cast-Iron Block & Replaceable Cylinder Liners
- β’ EMS 2 Engine Management System with Fault Diagnostics
- β’ Electronic High-Pressure Unit Injectors (EUI)
VOLVO 313kVA Diesel Generator Set β KCV-350GF (50Hz, 3-Phase)
The KCV-350GF is a high-capacity generator set built around the VOLVO PENTA TAD1341GE diesel engine. Featuring a 6-cylinder, 12.78-liter inline configuration with electronic high-pressure unit injectors and an electronically controlled wastegate turbo, this unit delivers a prime power output of 250kW (313kVA) and a standby power output of 280kW (350kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: VOLVO PENTA TAD1341GE, 4-stroke, water-cooled, turbocharged with charge-air cooling.
Displacement: 12.78L, providing substantial torque reserves for stable operation under heavy industrial loads.
Governor Type: Electronic governor (EMS 2), offering precise speed and frequency regulation.
Physical Dimensions: 2600mm (L) Γ 1000mm (W) Γ 1600mm (H) (based on catalog data).
Cooling System: Closed-circuit water cooling with a large-capacity radiator and engine-driven fan.
Control System: Digital control panel with real-time monitoring of voltage, current, and engine parameters, featuring automatic shutdown protection for low oil pressure, high coolant temperature, and overload.
Engineered with VOLVO PENTA's advanced D13 engine technology, the KCV-350GF provides stable and efficient power for large-scale industrial and commercial installations requiring a high-capacity power source.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
