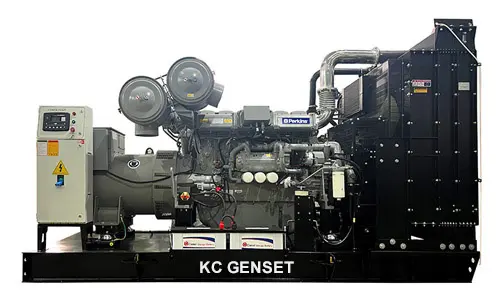

Perkins generator set
If this product cannot meet your specific power needs, you can check our other diesel generator sets or submit personalized power requirements to us. Our power engineers will contact you within 24 hours for customization.
⚡ In Stock
Perkins generator set
Power Range
20-2000kVA
Fuel Type
Diesel
Warranty
1 Year / 1000 Hours
Perkins 20-2500kVA. Open, silent, container, towable, skid-mounted. Gas gen set also available. Ideal for data center, hospital, telecom, farm, mining.
- • Smooth operation with low vibration and noise levels.
- • Low fuel consumption rate for reduced operating costs.
- • Low oil consumption rate, minimizing the frequency of oil top-ups.
- • Strong load acceptance and stable output, suitable for facilities with high power continuity requirements.
- • Extended service intervals for oil and fuel filters, reducing downtime for maintenance.
Adopting Perkins engines, featuring strong transient loading capacity, good maintainability and long service life;
Perkins engine with complete product series and wide power coverage has remarkable stability, reliability, durability and service life, can provide you with low operating costs and fast “return” cycle, with wide applications in communications, Industry, outdoor engineering, mining, risk resistance, military and other fields. The 400, 1100, 1300, 2000 and 4000 series diesel engines are produced by Perkins and its production plants in accordance with its global unified quality standards. Perkins’ worldwide service network provides customers with dependable service guarantee.
| 50HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-P10 | 10 | 8 | 9 | 7 | 403A-11 G1 | 1350*500*1090 |
| KC-P14A | 14 | 11 | 13 | 10 | 403A-15G1 | 1430*500*1150 |
| KC-P14B | 14 | 11 | 13 | 10 | 403D-15G | 1435*500*1150 |
| KC-P16 | 16 | 13 | 15 | 12 | 403A-15G2 | 1435*500*1150 |
| KC-P22 | 22 | 18 | 20 | 16 | 404A-22G1 | 1610*560*1195 |
| KC-P30 | 30 | 24 | 27 | 22 | 404D-22TG | 1680*560*1195 |
| KC-P32 | 32 | 26 | 30 | 24 | 1103A-33G | 1840*700*1270 |
| KC-P50 | 50 | 40 | 45 | 36 | 1103A-33TG1 | 1960*700*1350 |
| KC-P66 | 66 | 53 | 60 | 48 | 1103A-33TG2 | 2050*700*1350 |
| KC-P72 | 72 | 57 | 65 | 52 | 1104A-44TG1 | 2200*700*1350 |
| KC-P88A | 88 | 70 | 80 | 64 | 1104A-44TG2 | 2200*700*1350 |
| KC-P88B | 88 | 70 | 80 | 64 | 1104C-44TAG1 | 2280*700*1350 |
| KC-P110 | 110 | 88 | 100 | 80 | 1104C-44TAG2 | 2280*700*1350 |
| KC-P150 | 150 | 120 | 135 | 108 | 1106A-70TG1 | 2565*850*1425 |
| KC-P165 | 165 | 132 | 150 | 120 | 1106A-70TAG2 | 2750*850*1350 |
| KC-P200 | 200 | 160 | 180 | 144 | 1106A-70TAG3 | 2850*850*1350 |
| KC-P220 | 220 | 176 | 200 | 160 | 1106A-70TAG4 | 2850*1045*1825 |
| KC-P254 | 254 | 203 | 231 | 185 | 1506A-E88TAG2 | 2980*1055*1695 |
| KC-P283 | 283 | 226 | 257 | 206 | 1506A-E88TAG3 | 2980*1055*1695 |
| KC-P338 | 338 | 270 | 307 | 246 | 1506A-E88TAG5 | 3080*1090*1700 |
| KC-P400 | 400 | 320 | 350 | 280 | 2206C-E13TAG2 | 3460*1150*2030 |
| KC-P450 | 450 | 360 | 400 | 320 | 2206C-E13TAG3 | 3460*1150*2030 |
| KC-P500 | 500 | 400 | 455 | 364 | 2506C-E15TAG1 | 3780*1270*2020 |
| KC-P550 | 550 | 440 | 500 | 400 | 2506C-E 15TAG2 | 3780*1270*2020 |
| KC-P650 | 650 | 520 | 591 | 473 | 2806C-E 18TAG1A | 3780*1536*2180 |
| KC-P700 | 700 | 560 | 650 | 520 | 2806A-E18TAG2 | 3780*1536*2180 |
| KC-P820 | 820 | 656 | 746 | 597 | 4006-23TAG2A | 4250*1690*2150 |
| KC-P880 | 880 | 704 | 800 | 640 | 4006-23TAG3A | 4250*1690*2150 |
| KC-P1000 | 1000 | 800 | 910 | 728 | 4008TAG1A | 4735*2261*2256 |
| KC-P1125 | 1125 | 900 | 1022 | 818 | 4008TAG2A | 4735*2261*2256 |
| KC-P1250 | 1250 | 1000 | 1125 | 900 | 4008-30TAG3 | 4735*2261*2256 |
| KC-P1375 | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | 4800*2100*2297 |
| KC-P1500 | 1500 | 1200 | 1375 | 1100 | 4012-46TWG3A | 4800*2100*2297 |
| KC-P1650 | 1650 | 1320 | 1500 | 1200 | 4012-46TAG2A | 4900*2100*2297 |
| KC-P1850 | 1850 | 1480 | 1688 | 1350 | 4012-46TAG3A | 4900*2100*2297 |
| KC-P2000 | 2000 | 1600 | 1850 | 1480 | 4016TAG1A | 5035*2597*2150 |
| KC-P2200A | 2200 | 1760 | 2000 | 1600 | 4016TAG2A | 5035*2597*2150 |
| KC-P2200B | 2200 | 1760 | 2000 | 1600 | 4016-61TRG2 | 5250*2600*2150 |
| KC-P2500 | 2500 | 2000 | 2250 | 1800 | 4016-61TRG3 | 5250*2600*2150 |
| 60HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-P13 | 13 | 10 | 11 | 9 | 403D-11G | 1350*500*1090 |
| KC-P16 | 16 | 13 | 15 | 12 | 403D-15G | 1435*500*1150 |
| KC-P19 | 19 | 15 | 17 | 14 | 403A-15G2 | 1435*500*1150 |
| KC-P26 | 26 | 21 | 24 | 19 | 404D-22G | 1610*560*1195 |
| KC-P35 | 35 | 29 | 33 | 26 | 404D-22TG | 1610*560*1195 |
| KC-P38 | 38 | 30 | 35 | 28 | 1103A-33G | 1840*700*1270 |
| KC-P59 | 59 | 47 | 54 | 43 | 1103A-33TG1 | 1960*700*1350 |
| KC-P75 | 75 | 60 | 68 | 55 | 1103A-33TG2 | 2050*700*1350 |
| KC-P84 | 84 | 67 | 76 | 61 | 1104A-44TG1 | 2200*700*1350 |
| KC-P100A | 100 | 80 | 90 | 73 | 1104A-44TG2 | 2200*700*1350 |
| KC-P100B | 100 | 80 | 90 | 72 | 1104C-44TAG1 | 2280*700*1350 |
| KC-P125 | 125 | 100 | 115 | 92 | 1104C-44TAG2 | 2280*700*1350 |
| KC-P169 | 169 | 135 | 152 | 122 | 1106A-70TG1 | 2565*850*1425 |
| KC-P188 | 188 | 150 | 169 | 135 | 1106A-70TAG2 | 2750*850*1350 |
| KC-P219 | 219 | 175 | 197 | 158 | 1106A-70TAG3 | 2850*850*1350 |
| KC-P273 | 273 | 218 | 248 | 198 | 1506A-E88TAG2 | 2980*1055*1695 |
| KC-P320 | 320 | 256 | 290 | 232 | 1506A-E88TAG3 | 2980*1055*1695 |
| KC-P390 | 390 | 312 | 352 | 282 | 1506A-E88TAG5 | 3080*1090*1700 |
| KC-P438A | 438 | 350 | 400 | 320 | 2206C-E13TAG2 | 3460*1150*2030 |
| KC-P438B | 438 | 350 | 400 | 320 | 2206C-E13TAG3 | 3460*1150*2030 |
| KC-P563A | 563 | 450 | 500 | 400 | 2506C-E15TAG1 | 3780*1270*2020 |
| KC-P563B | 563 | 450 | 500 | 400 | 2506C-E 15TAG2 | 3780*1270*2020 |
| KC-P687 | 687 | 550 | 625 | 500 | 2806C-E 18TAG 1A | 3780*1536*2180 |
| KC-P825 | 825 | 660 | 750 | 600 | 4006-23TAG2A | 4250*1690*2150 |
| KC-P940 | 940 | 750 | 849 | 679 | 4006-23TAG3A | 4250*1690*2150 |
| KC-P1100 | 1100 | 880 | 1000 | 800 | 4008TAG2 | 4735*2261*2256 |
| KC-P1375 | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | 4800*2100*2297 |
| KC-P1500 | 1500 | 1200 | 1375 | 1100 | 4012-46TWG3A | 4800*2100*2297 |
| KC-P1650 | 1650 | 1320 | 1500 | 1200 | 4012-46TAG2A | 4900*2100*2297 |
| KC-P1850 | 1850 | 1480 | 1690 | 1350 | 4012-46TAG3A | 4900*2100*2297 |
↔ Swipe to view full table
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
Model
Perkins generator set
Power Range
20-2000kVA
Fuel Type
Diesel
Frequency
50/60 Hz
Voltage
220V / 380V / 415V / Custom
Cooling System
Water-cooled / Air-cooled
Control System
Automatic / Manual / Remote
