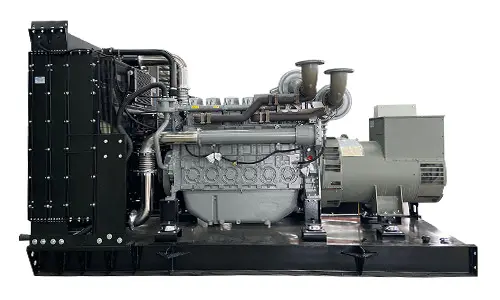

KCP-300GF Perkins 257KVA Diesel Generator 3-Phase 50HZ 400/230V
KCP-300GF Perkins 257KVA Diesel Generator 3-Phase 50HZ 400/230V
Genuine Perkins 257kVA diesel generator KCP-300GF, 50Hz 400/230V 3-phase, equipped with a high-output 1506A-E88TAG3 6.8L engine delivering 206kW prime and 240kW standby output, featuring an optimized turbocharger match, large radiator surface, and electronic governor for fast load response.
- • High-Output Perkins 1506A-E88TAG3 Engine Calibration
- • Large Radiator Surface Area for Effective Heat Dissipation
- • Electronic Governor with Fast Load Response Characteristics
- • Reinforced Steel Base Frame with Enhanced Vibration Isolation
- • Optimized Turbocharger Matching for Consistent Power Delivery
Perkins 257kVA Diesel Generator Set – KCP-300GF (50Hz, 3-Phase)
The KCP-300GF is a high-performance generator set built around the Perkins 1506A-E88TAG3 diesel engine. Featuring a 6-cylinder, 6.8-liter inline configuration with a high-output turbocharger calibration, this unit delivers a prime power output of 206kW (257kVA) and a standby power output of 240kW (300kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Perkins 1506A-E88TAG3, 4-stroke, water-cooled, turbocharged with optimized air intake.
Displacement: 6.8L, providing sustained torque output across the upper operating range.
Physical Dimensions: 3080mm (L) × 1090mm (W) × 1700mm (H) – accommodating a larger cooling package and reinforced frame.
Cooling System: Closed-circuit water cooling with a large radiator surface area, designed for effective heat dissipation.
Governor Type: Electronic governor, providing fast transient response and precise frequency regulation.
Control System: Digital control module with full monitoring of voltage, current, oil pressure, and coolant temperature, including automatic shutdown for critical fault conditions.
With its elevated power calibration and reinforced construction, the KCP-300GF delivers stable and reliable power for medium-to-large industrial and commercial installations requiring a high-capacity backup or prime power source.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
