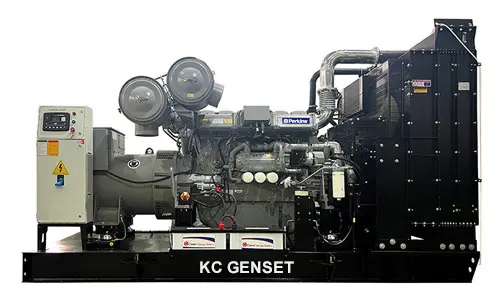

KCP-260GF Perkins 231KVA Diesel Generator 3-Phase 50HZ 400/230V
KCP-260GF Perkins 231KVA Diesel Generator 3-Phase 50HZ 400/230V
Genuine Perkins 231kVA diesel generator KCP-260GF, 50Hz 400/230V 3-phase, equipped with a 6.8L 1506A-E88TAG2 6-cylinder engine delivering 185kW prime and 208kW standby output, featuring enhanced turbocharging and a large-capacity cooling radiator for stable continuous high-load power.
- • Enhanced Turbocharging for Improved Combustion Efficiency
- • Larger Cooling Radiator for Sustained High-Load Operation
- • Upgraded Perkins 1506A-E88TAG2 6.8L Engine Platform
- • Durable Block Construction for Extended Service Life
- • Digital Control Panel with Multi-Parameter Monitoring
Perkins 231kVA Diesel Generator Set – KCP-260GF (50Hz, 3-Phase)
The KCP-260GF is a high-capacity generator set built around the advanced Perkins 1506A-E88TAG2 diesel engine. Featuring a 6-cylinder, 6.8-liter inline configuration with enhanced turbocharging and charge-air cooling, this unit delivers a prime power output of 185kW (231kVA) and a standby power output of 208kW (260kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Perkins 1506A-E88TAG2, 4-stroke, water-cooled, turbocharged with charge-air cooling.
Displacement: 6.8L, providing increased torque reserves for stable operation under medium-to-heavy industrial loads.
Physical Dimensions: 2980mm (L) × 1055mm (W) × 1695mm (H) – designed to accommodate the larger cooling package.
Cooling System: Closed-circuit water cooling with a high-capacity radiator, suitable for sustained operation in elevated ambient temperatures.
Governor Type: Electronic governor, offering precise speed and frequency regulation.
Control System: Advanced digital control module with real-time monitoring of voltage, current, oil pressure, and coolant temperature, featuring automatic shutdown protection against critical faults.
Engineered with a larger 6.8L displacement and enhanced cooling, the KCP-260GF provides stable, reliable, and efficient power for industrial facilities and commercial buildings requiring a higher capacity threshold.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
