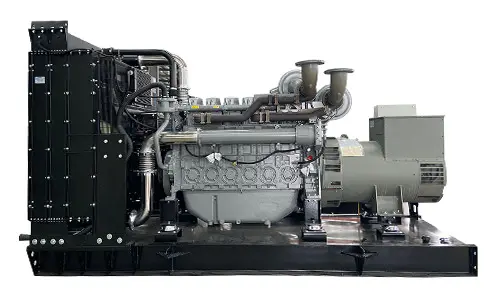

KCP-90GF Perkins 80KVA Diesel Generator 3-Phase 50HZ 400/230V
KCP-90GF Perkins 80KVA Diesel Generator 3-Phase 50HZ 400/230V
Genuine Perkins 80kVA diesel generator KCP-90GF, 50Hz 400/230V 3-phase, equipped with a high-output 1104A-44TG2 4.4L engine delivering 64kW prime and 72kW standby power, featuring precision AVR voltage regulation and an oversized cooling system for stable, continuous operation under heavy loads.
- • Extended 90kVA Standby Reserve for Peak Demands
- • Heavy-Duty Steel Frame with Integrated Vibration Isolators
- • High-Output Perkins 1104A-44TG2 Engine Calibration
- • Precision Voltage Regulation for Sensitive Equipment
- • Large-Capacity Radiator System for Continuous Duty
Perkins 80kVA Diesel Generator Set – KCP-90GF (50Hz, 3-Phase)
The KCP-90GF is a high-performance generator set powered by the Perkins 1104A-44TG2 diesel engine. Featuring a 4-cylinder, 4.4-liter inline configuration with optimized turbocharging and fuel delivery, this unit delivers a prime power output of 64kW (80kVA) and a standby power output of 72kW (90kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: Perkins 1104A-44TG2, 4-stroke, water-cooled, turbocharged with electronic/mechanical governor.
Displacement: 4.4L, engineered to provide sustained torque at the upper end of this platform's capability.
Physical Dimensions: 2200mm (L) × 700mm (W) × 1350mm (H) – maintaining a manageable footprint for medium-scale installations.
Voltage Regulation: Automatic voltage regulator (AVR) for consistent ±1% voltage stability.
Cooling System: Closed-circuit water cooling with an oversized radiator, designed for effective heat dissipation during extended operation.
Control System: Digital control module with clear display and protective features including low oil pressure, high water temperature, and overload shutdown.
With its higher output calibration and AVR-equipped system, the KCP-90GF provides stable, high-quality power for commercial and industrial facilities requiring reliable mid-range energy supply.
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
