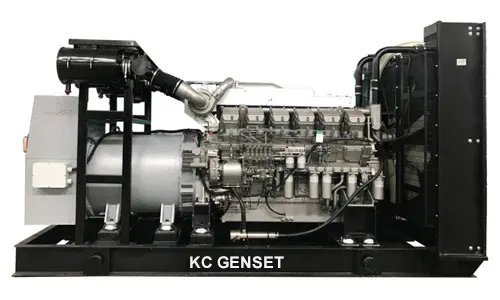

138KVA SDEC Diesel Generator KCS-138GF
138KVA SDEC Diesel Generator KCS-138GF
Genuine SDEC 138kVA diesel generator KCS-138GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder 6HTAA6.5-G21 6.5L engine delivering 110kW prime and 121kW standby output, featuring electronic governor and efficient fuel consumption for reliable continuous power supply.
- • Comprehensive Base Fuel Tank for Extended Runtime
- • Robust 6.5L Displacement with 16.0:1 Compression Ratio
- • Electronic Governor for Precise Frequency Regulation
- • Field-Proven 6-Cylinder SDEC 6HTAA6.5-G21 Engine
- • Efficient Fuel Economy with 28.6L/H Consumption
SDEC 138kVA Diesel Generator Set – KCS-138GF (50Hz, 3-Phase)
The KCS-138GF is a reliable and powerful generator set built around the SDEC 6HTAA6.5-G21 diesel engine. Featuring a 6-cylinder, 6.5-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 110kW (138kVA) and a standby power output of 121kW (151kVA) at 50Hz, 400/230V, 3-phase .
Core Technical Specifications:
Engine Model: SDEC 6HTAA6.5-G21, 4-stroke, water-cooled, turbocharged with intercooling
Displacement: 6.5L, with a bore × stroke of 105mm × 124mm and compression ratio of 16.0:1
Governor Type: Electronic governor, offering precise speed regulation
Alternator: Brushless, self-excited, H-class insulation, IP23 protection
Control System: Digital control panel with comprehensive protection features, including low oil pressure, high coolant temperature, and overload alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
Ready to Power Your Business?
Get a customized quote for your power generation needs today.
