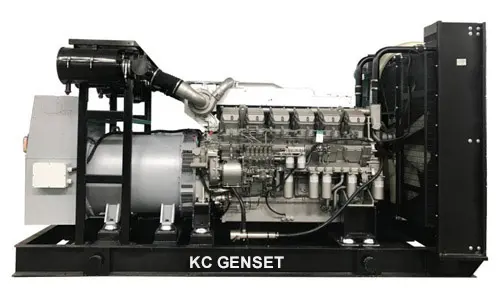

400KVA SDEC Diesel Generator KCS-400GF
400KVA SDEC Diesel Generator KCS-400GF
Genuine SDEC 400kVA diesel generator KCS-400GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder 6ETAA11.8-G21 11.8L engine with electronic governor delivering 320kW prime and 352kW standby output, featuring high-efficiency combustion and robust construction for reliable large-scale power supply.
- β’ Robust Construction with Intercooling Technology
- β’ Efficient Combustion System with 17:1 Compression Ratio
- β’ Strong Prime Output of 320kW for Continuous Duty
- β’ High-Power SDEC 6ETAA11.8-G21 Engine for Large-Scale Operations
- β’ Electronic Governor for Precision Frequency Regulation
SDEC 400kVA Diesel Generator Set β KCS-400GF (50Hz, 3-Phase)
The KCS-400GF is a high-capacity generator set built around the SDEC 6ETAA11.8-G21 turbocharged diesel engine. Featuring a 6-cylinder, 11.8-liter inline configuration with air-to-air charge cooling, this unit delivers a prime power output of 320kW (400kVA) and a standby power output of 352kW (440kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: SDEC 6ETAA11.8-G21, 4-stroke, water-cooled, turbocharged with charge-air cooling
Displacement: 11.8L, with a bore Γ stroke of 128mm Γ 153mm and compression ratio of 17:1
Governor Type: Electronic governor, offering precise speed and frequency regulation
Fuel Consumption: Approximately 73.3 L/H at 100% prime load
Alternator: Brushless, self-excited, H-class insulation, IP23 protection
Control System: Digital control panel with comprehensive protection features, including low oil pressure, high coolant temperature, and overload alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
