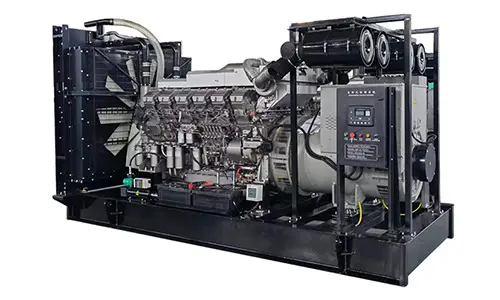

200KVA SDEC Diesel Generator KCS-200GF
200KVA SDEC Diesel Generator KCS-200GF
Genuine SDEC 200kVA diesel generator KCS-200GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder 6DTAA8.9-G22 8.9L engine delivering 160kW prime and 176kW standby output, featuring turbocharged intercooling and electronic governor for stable, continuous power supply.
- • Robust 160kW Prime Output for Continuous Industrial Duty
- • Standardized 400/230V 3-Phase Output with Global Compatibility
- • Efficient 6-Cylinder 8.82L Displacement with High Torque Reserve
- • Precision Electronic Governor for Stable Frequency Output
- • Advanced SDEC 6DTAA8.9-G22 Engine for Reliable Performance
SDEC 200kVA Diesel Generator Set – KCS-200GF (50Hz, 3-Phase)
The KCS-200GF is a reliable generator set powered by the SDEC 6DTAA8.9-G22 diesel engine. Featuring a 6-cylinder, 8.9-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 160kW (200kVA) and a standby power output of 176kW (220kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: SDEC 6DTAA8.9-G22, 4-stroke, water-cooled, turbocharged & intercooled
Displacement: 8.9L, with a bore × stroke of 114mm × 144mm and compression ratio of 16.5:1
Governor Type: Electronic governor, offering precise speed and frequency regulation
Control System: Digital control panel with comprehensive protection features, including low oil pressure and high coolant temperature alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
