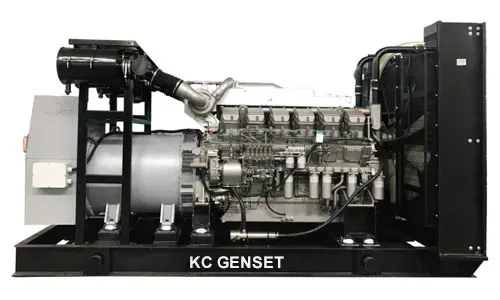

188KVA SDEC Diesel Generator KCS-188GF
188KVA SDEC Diesel Generator KCS-188GF
Genuine SDEC 188kVA diesel generator KCS-188GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder 6HTAA6.5-G23 6.5L engine with electronic governor delivering 150kW prime and 165kW standby output, featuring efficient combustion and durable wet liners for reliable power supply.
- • Electronic Governor for Stable Frequency Control
- • Wet-Type Cylinder Liners for Simplified Maintenance
- • SDEC 6HTAA6.5-G23 Six-Cylinder Diesel Engine
- • Enhanced 24V Electric Start System
- • Efficient 6.5L Displacement with 16:1 Compression Ratio
SDEC 188kVA Diesel Generator Set – KCS-188GF (50Hz, 3-Phase)
The KCS-188GF is a reliable generator set powered by the SDEC 6HTAA6.5-G23 diesel engine. Featuring a 6-cylinder, 6.5-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 150kW (188kVA) and a standby power output of 165kW (206kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: SDEC 6HTAA6.5-G23, 4-stroke, water-cooled, turbocharged & intercooled
Displacement: 6.5L, with a bore × stroke of 105mm × 124mm and compression ratio of 16:1
Governor Type: Electronic governor, offering precise speed regulation
Alternator: Brushless, self-excited, H-class insulation, IP23 protection
Cooling System: Closed-circuit water cooling with fan-assisted radiator
Control System: Digital control panel with comprehensive protection features, including low oil pressure, high coolant temperature, and overload alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
