125KVA WEICHAI Diesel Generator KCW-125GF
125KVA WEICHAI Diesel Generator KCW-125GF
Genuine WEICHAI 125kVA diesel generator KCW-125GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder WP6D132E200 6.75L engine delivering 100kW prime output, featuring high-pressure common rail injection and closed-circuit cooling for reliable, efficient power supply.
- • Proven WEICHAI WP6D132E200 Six-Cylinder Engine
- • 24V DC Electric Start for Quick and Reliable Startup
- • Closed-Circuit Forced Water Cooling System
- • Robust 6.75L Displacement for Sustained Power Delivery
- • Advanced High-Pressure Common Rail Fuel System
WEICHAI 125kVA Diesel Generator Set – KCW-125GF (50Hz, 3-Phase)

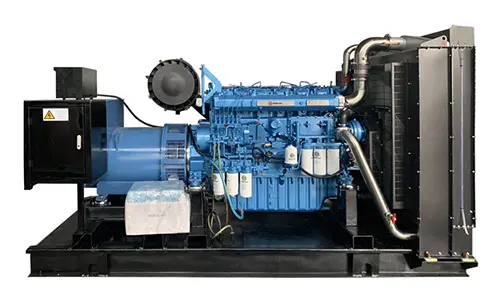

The KCW-125GF is a reliable generator set powered by the WEICHAI WP6D132E200 diesel engine. Featuring a 6-cylinder, 6.75-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 100kW (125kVA) and a standby power output of 132kW (165kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: WEICHAI WP6D132E200, 4-stroke, water-cooled, turbocharged with intercooling
Displacement: 6.75L, with a bore × stroke of 105mm × 130mm and compression ratio of 18:1
Governor Type: Electronic governor, offering precise speed and frequency regulation
Cooling System: Closed-circuit forced water cooling with a fan-assisted radiator
Control System: Digital control panel with comprehensive protection features, including low oil pressure and high coolant temperature alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
