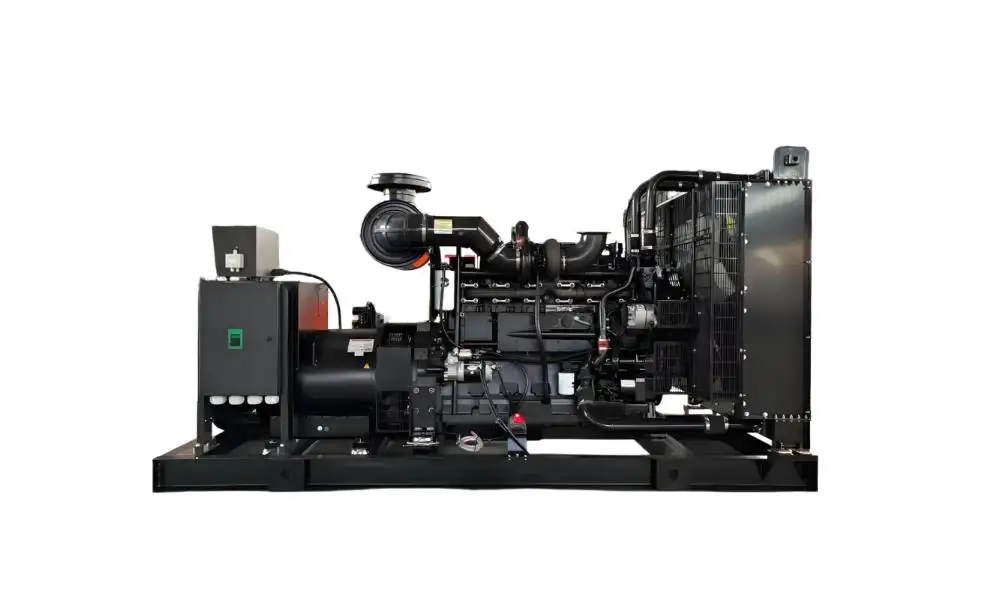

150KVA WEICHAI Diesel Generator KCW-150GF
150KVA WEICHAI Diesel Generator KCW-150GF
Genuine WEICHAI 150kVA diesel generator KCW-150GF, 50Hz 400/230V 3-phase, powered by a 6-cylinder WP6D152E200 6.75L engine with common rail injection delivering 120kW prime and 132kW standby output, featuring turbocharged intercooling and smart control for reliable power supply.
- • Advanced High-Pressure Common Rail Fuel System
- • 24V DC Electric Start with Intelligent Digital Controller
- • Integrated Base Fuel Tank for Extended Autonomy
- • Turbocharged & Intercooled Intake System
- • Robust 6.75L Six-Cylinder Platform for Sustained Power
WEICHAI 150kVA Diesel Generator Set – KCW-150GF (50Hz, 3-Phase)
The KCW-150GF is a reliable generator set powered by the WEICHAI WP6D152E200 diesel engine. Featuring a 6-cylinder, 6.75-liter inline configuration with high-pressure common rail injection, turbocharging and intercooling, this unit delivers a prime power output of 120kW (150kVA) and a standby power output of 132kW (165kVA) at 50Hz, 400/230V, 3-phase .
Core Technical Specifications:
Engine Model: WEICHAI WP6D152E200, 4-stroke, water-cooled, turbocharged & intercooled
Displacement: 6.75L, with a bore × stroke of 105mm × 130mm and compression ratio of 18:1
Governor Type: Electronic governor (or mechanical), offering precise speed control
Fuel Consumption: Approximately ≤205-210 g/kWh at prime load
Fuel System: Direct injection with high-pressure common rail
Control System: Digital control panel with multi-language interface, automatic mains failure (AMF) detection, and comprehensive protection functions
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
