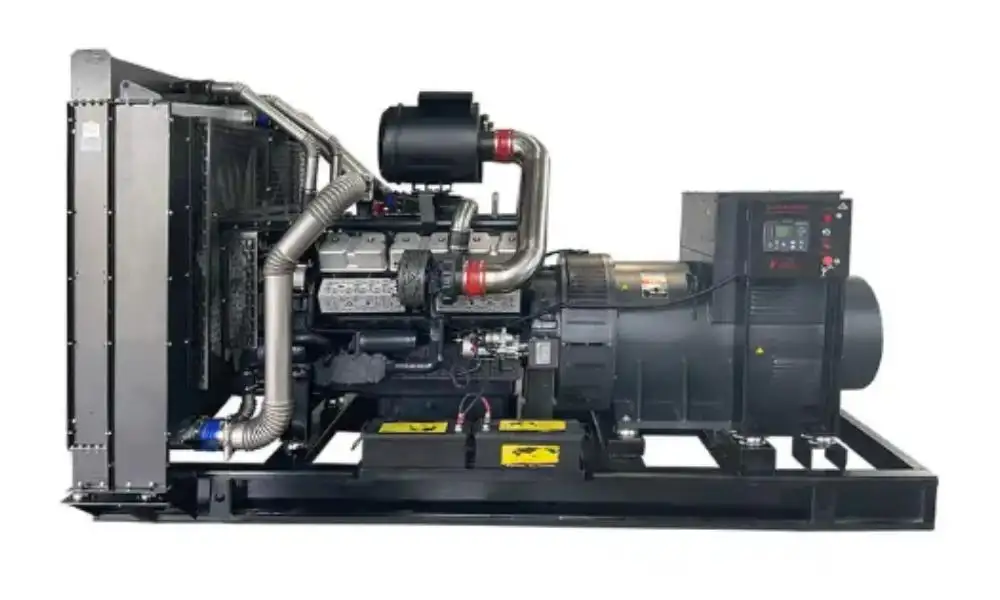

80KVA WEICHAI Diesel Generator KCW-80GF
80KVA WEICHAI Diesel Generator KCW-80GF
Genuine WEICHAI 80kVA diesel generator KCW-80GF, 50Hz 400/230V 3-phase, powered by a turbocharged WP4.1D80E200 4.087L engine with electronic governor delivering 64kW prime and 72kW standby output, featuring efficient combustion and 24V electric start for reliable power supply.
- • Electronic Governor for Precision Speed Control
- • Efficient 4.087L Displacement with 17.5:1 Compression Ratio
- • 24V DC Electric Start for Quick Startup
- • WEICHAI WP4.1D80E200 Turbocharged Engine
- • Proven Global Service Network with CE Certification
WEICHAI 80kVA Diesel Generator Set – KCW-80GF (50Hz, 3-Phase)
The KCW-80GF is a reliable generator set powered by the WEICHAI WP4.1D80E200 diesel engine. Featuring a 4-cylinder, 4.087-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 64kW (80kVA) and a standby power output of 72kW (90kVA) at 50Hz, 400/230V, 3-phase .
Core Technical Specifications:
Engine Model: WEICHAI WP4.1D80E200, 4-stroke, water-cooled, turbocharged
Displacement: 4.087L, with a bore × stroke of 105mm × 118mm and compression ratio of 17.5:1
Governor Type: Electronic governor, offering precise speed and frequency regulation
Cooling System: Closed-circuit forced water cooling with a fan-assisted radiator
Control System: Digital control panel with comprehensive protection features, including low oil pressure and high coolant temperature alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
