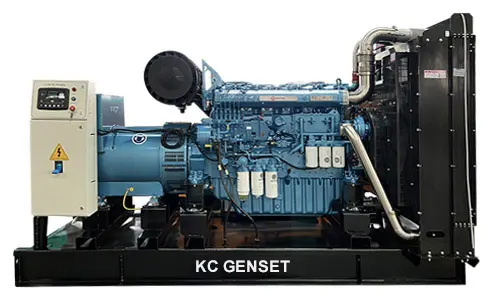

38KVA WEICHAI Diesel Generator KCW-38GF
38KVA WEICHAI Diesel Generator KCW-38GF
Genuine WEICHAI 38kVA diesel generator KCW-38GF, 50Hz 400/230V 3-phase, powered by a turbocharged WP2.3D40E200 2.3L engine with electronic governor delivering 30kW prime and 33kW standby output, featuring efficient combustion and 24V electric start for reliable power supply.
- • High-Compression Combustion for Fuel Economy
- • Turbocharged & Intercooled WEICHAI WP2.3D40E200 Engine
- • Durable 4-Cylinder Design with Dry Cylinder Liners
- • Compact 2.3L Package for Space-Efficient Installations
- • 24V DC Electric Start for Quick Startup
WEICHAI 38kVA Diesel Generator Set – KCW-38GF (50Hz, 3-Phase)
The KCW-38GF is a reliable generator set powered by the WEICHAI WP2.3D40E200 diesel engine. Featuring a 4-cylinder, 2.3-liter inline configuration with turbocharging and charge-air cooling, this unit delivers a prime power output of 30kW (38kVA) and a standby power output of 33kW (41kVA) at 50Hz, 400/230V, 3-phase.
Core Technical Specifications:
Engine Model: WEICHAI WP2.3D40E200, 4-stroke, water-cooled, turbocharged with charge-air cooling
Displacement: 2.3L, with a bore × stroke of 89mm × 92mm and compression ratio of 16.5:1
Governor Type: Electronic governor, offering precise speed and frequency regulation
Cooling System: Closed-circuit forced water cooling with radiator and belt-driven fan
Control System: Digital control panel with comprehensive protection features, including low oil pressure and high coolant temperature alarms
Supporting Services (Configuration Services)
Pre-sales Service
- We can provide environmental adaptation solutions for extreme cold, high temperature, salt spray, etc. for you to choose from
- Assist in coordinating local voltage, frequency, and grid connection requirements
- Can provide capacity assessment and reference suggestions for data center layout
In-sales Service
- Conduct a full load test before leaving the factory and provide a test report
- Adopting moisture-proof and shockproof packaging, suitable for sea transportation
- Can synchronize production progress and provide customs clearance documents along with the goods
After-sales Service
- Provide technical consultation and remote guidance during working hours
- Partial areas have spare parts reserves, which can shorten the supply cycle
- Provide basic operation training materials and arrange online explanations as needed
Application Areas
- Infrastructure: Industrial and mining enterprises, real estate developments, road and bridge construction sites
- Public Services: Hospitals, schools, postal and telecommunications facilities, fire departments
- Specialized Scenarios: Forest and pasture areas, military units, and any locations requiring highly reliable power supply
